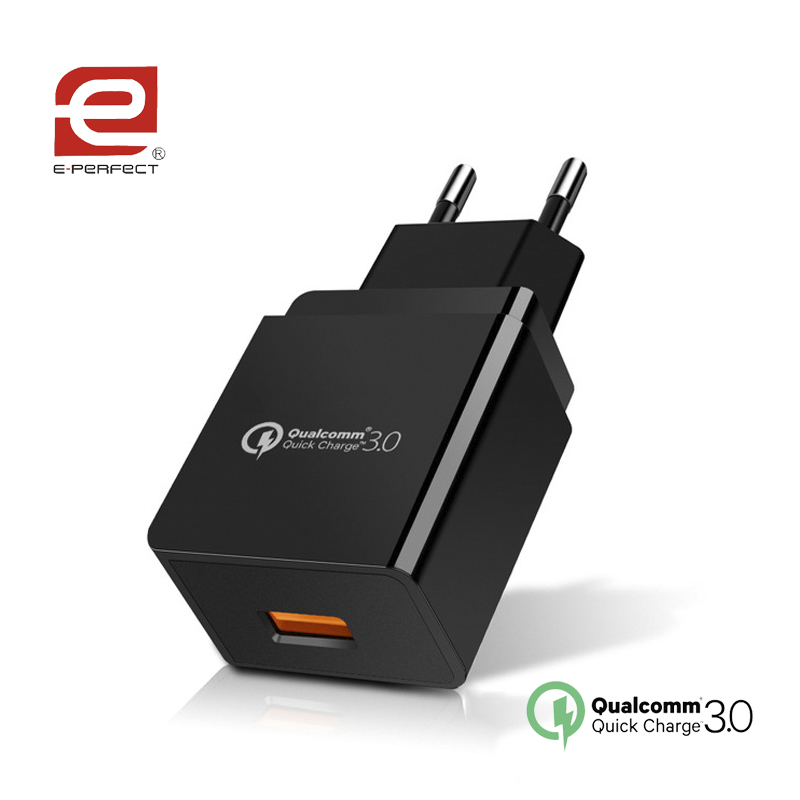

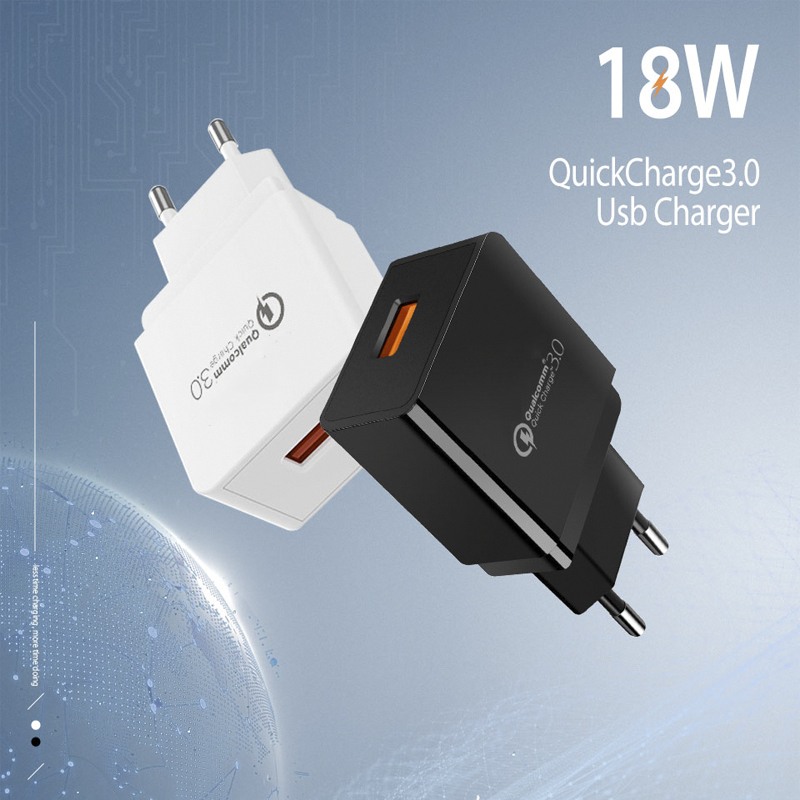

Quick Charge 3.0 USB Fast Charger QC3.0 Rapid Wall Charger A
| Product Model | EB-QCT214 (QC3.0 QUICK CHARGER) |
| input voltage (ACV) | 100-240VAC |
| output voltage (DCV) | 3.6V~12V |
| rated output current | 18W,single USB port |
| output load regulation | ±5.0% |
| output ripple&sound | ≤80mVp-p |
| starting delay(S) | starting time:≤500ms,duration time:≥20ms |
| work efficiency | 85% |
| protection function | short-circuit,over-current,over voltage,over-load protection |
| working enviroment | work temp:-10℃~+60℃(full-load) |
| storage temp:5%-95%RH(no condensation) | |
| test categories | no-load voltage,input current,load voltage,ripple output,shell to the |

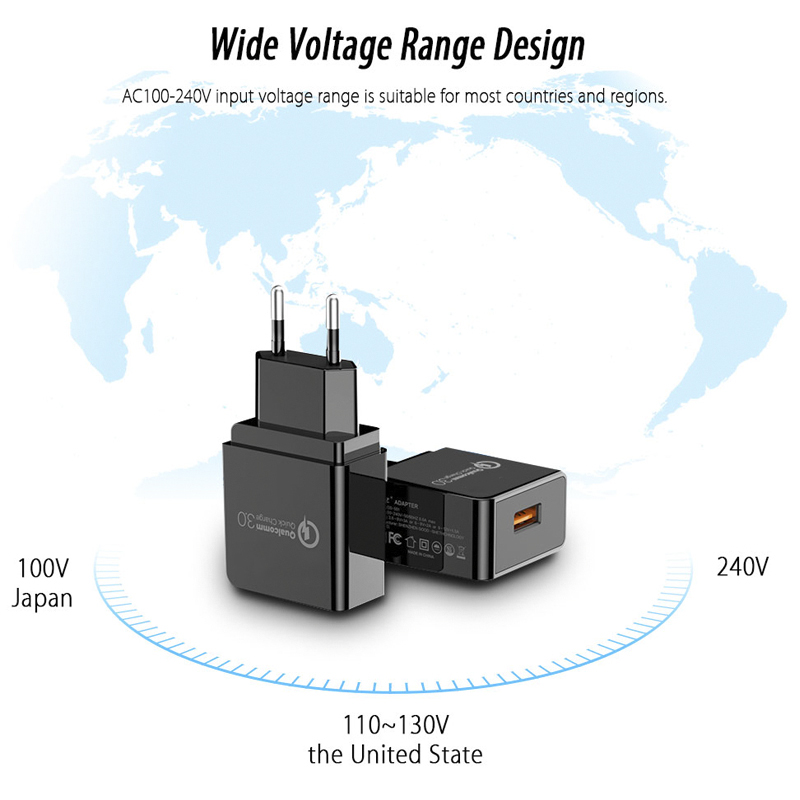

Iput ： 100--240V
Output: QC3.0： 3.6-6.5V/3A , 6-9V/ 2A , 9-12V/1.5A
USB Ports: 1
Quality Certification:CE,RoHS,FCC
Material:PC
Color: black / white

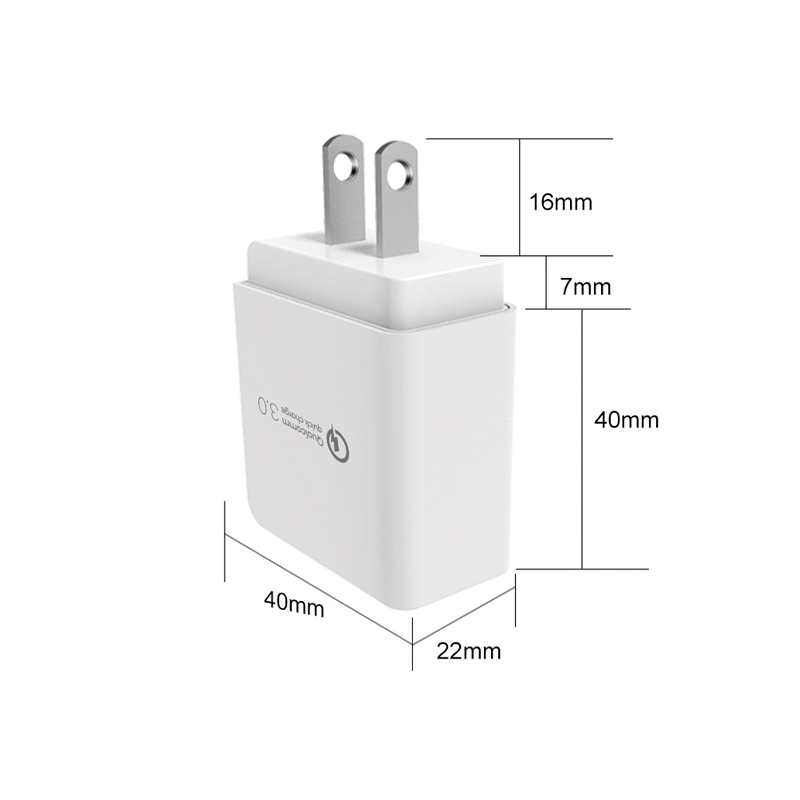

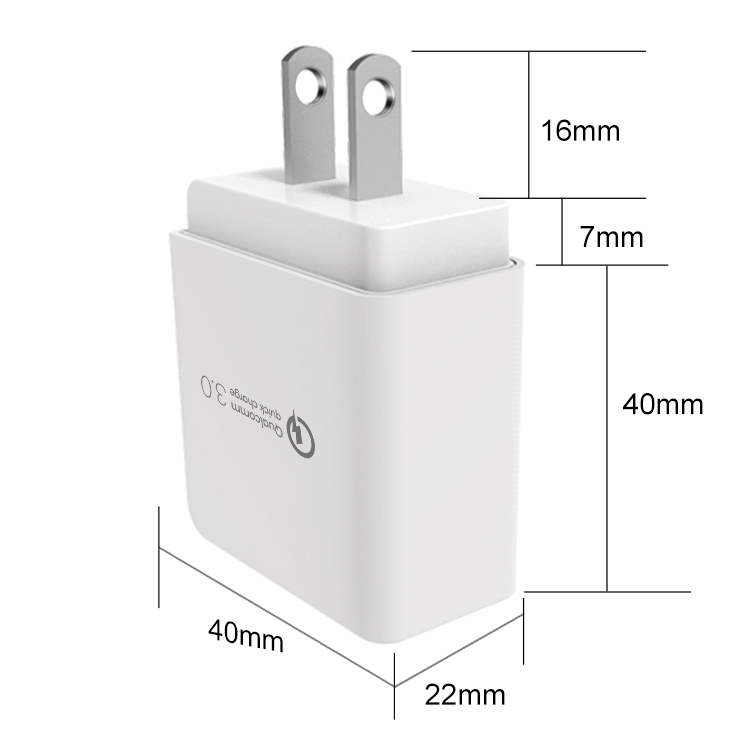

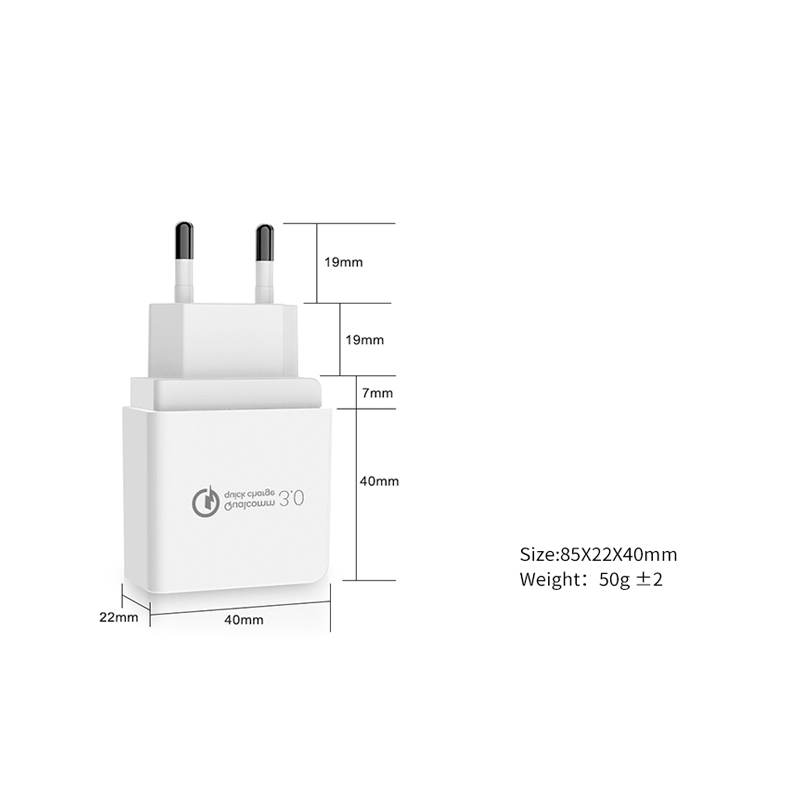

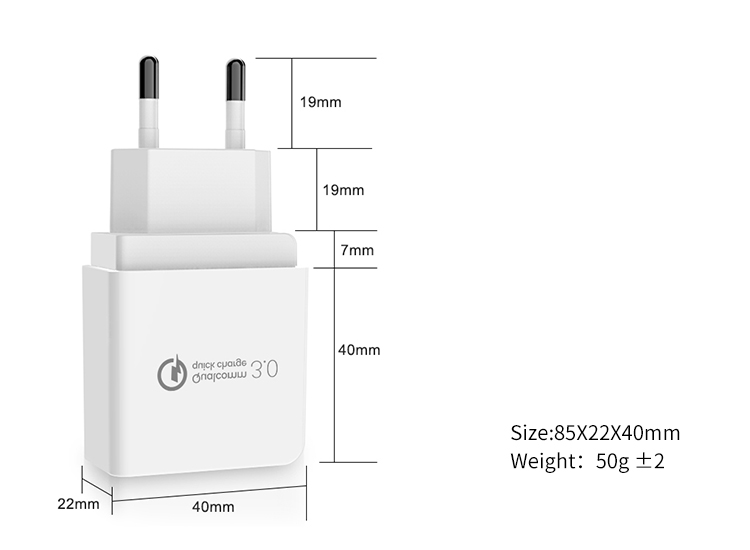

Size : EU: 85*40*22 mm
US: 63*40*23 mm
wight: 50g
wight: 28g
US: 63*40*23 mm
wight: 50g
wight: 28g
